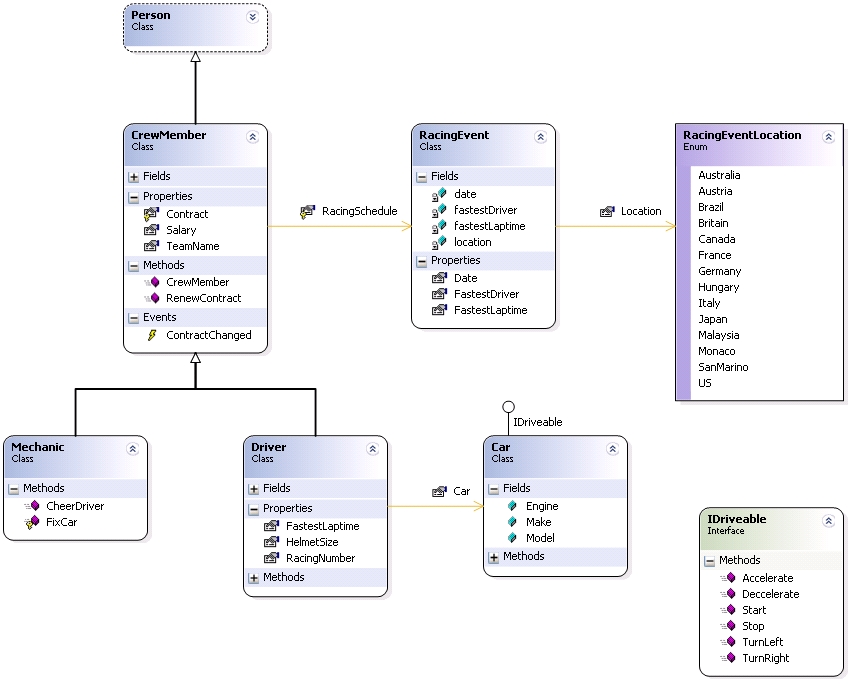

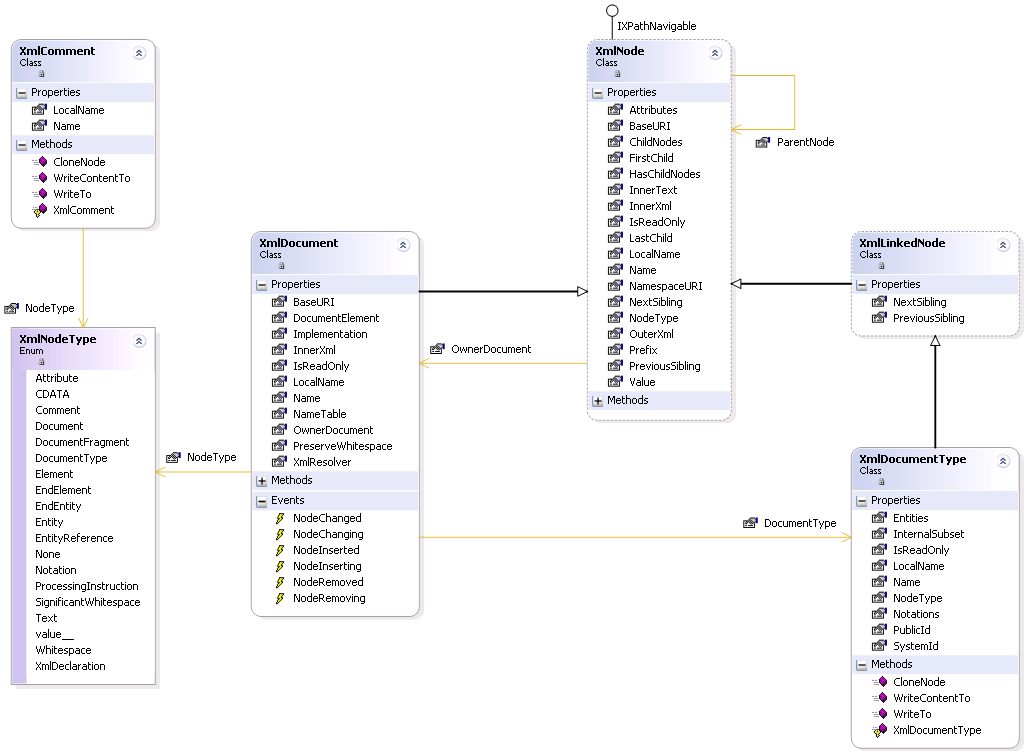

Keith
posted
a couple of
screenshots
of the Whidbey class designer a few weeks ago. Two things about this
designer leapt out at me. First, it’s not a UML class designer (though
it borrows heavily from UML’s graphical syntax). Second, it doesn’t
provide much abstraction over the raw code. This lead me to think about
the role of class modeling in the analysis and design process. How
similar are the analysis and design models? UML doesn’t have an analysis
model syntax, so typically the analysis phase uses the class diagram as
well, but with less details. Are design models just analysis models with
more details? Or is there a need / opportunity for higher-abstraction
analysis modeling separate from (but transformable to) design models?
(Note, much of my thinking expressed in this post comes from a
discussion with my father. If you read Pat’s
blog,
you know that Dad’s an architect for the FAA. Not that he agrees with me
– actually, just the opposite. I also discussed this at length with an
ex-teammate Tim Mallalieu. I’m hoping they’ll both respond in the
comments since neither has their own blog…yet.)
I’m a big fan of Ivar Jacobson’s book Object Oriented Software
Engineering
– it’s one of the few on my office
bookshelf.
However, like many OO methodologies, dealing with the relational
database is mostly left as an exercise for the user. In a 500+ page
book, Jacobson dedicates a scant 15 pages on the topic of persisting
objects in a relational database. Fowler
acknowledges this in PoEAA
when he points out that the database is often treated like the “crazy
aunt who’s shut up in an attic and whom nobody wants to talk about” in
OO design. However, in almost all enterprise development today, the
database is a reality and a process that doesn’t formally deal with
databases is fundamentally incomplete. That also means that the database
needs to be included in the model.
From my experience, you typically start including the database in the
model during the design phase. In the analysis phase, I want to work at
a higher level of abstraction. Jacobson writes about Entity, Boundary
and Control objects. Entity objects are used to model long-lived
information – i.e. information that is stored in the database. Entities
share a lot of similarities with classes – they have names, methods, and
associated state – but are built at a higher level of abstraction. By
ignoring implementation details (like database persistence strategy) you
can focus better at the problem at hand. When you move from analysis to
design, entities get mapped to both code design elements (classes,
interfaces, enumerations, etc) and database design elements (tables,
procs, views, etc).
This mapping from analysis to design is influenced by several decisions.
Fowler details three domain logic patterns in PoEAA: Domain
Model,
Transaction
Script
and Table
Module. Your
pattern choice has profound implication on your design model. Only when
you use the domain model pattern is there a one-to-one mapping between
entity analysis objects and class design objects. If you use the other
patterns, that one-to-one mapping doesn’t exist. Transaction scripts
don’t keep any state across method invocations and table modules are
built as collections rather than distinct objects. To me, this implies
that analysis and design models are fundamentally different and
differentiated by more than the level of detail.
Furthermore, the analysis to design mapping is influenced by the kind of
data represented by your entities. The Information & Application
Architecture talk from the Architecture Strategy
Series
discusses four types of data: Request/Response (i.e. messages),
Activity-Oriented, Resource-Oriented and Reference. Each has different
usage and representation semantics. Reference and message data is
read-only and almost always represented in XML. Reference data is also
version-stamped. Activity and resource oriented data are private to the
service and almost always stored in relational tables. However,
resource-oriented data is usually highly concurrent while
activity-oriented data is not. These differences in data semantics
implies different design models for my entities. For example, O/R
mapping works great for read-only and low concurrent data but not well
for highly concurrent data. Again, the lack of one-to-one mapping
implies a true difference between analysis and design models.
Personally, I’d like an analysis-domain-specific language to build my
entities in (as well as my controls and boundaries). I’d also like to
indicate what type of data each entity represents. When I map that model
into the design model, I’d like to choose my domain logic strategy. The
output of this mapping process would be both a class design model and a
database design model based on the analysis model, the kinds of data in
the analysis model as the persistence strategy chosen. In a perfect
world, the design would be generated from the analysis model
auto-magically. However, since I believe in Platt’s Second
Law,
I’m not sure generating the design model is particularly feasible. I
guess when I get my hands on the Whidbey modeling
engine,
I’ll get a chance to find out.
